Design of Structural Health Monitoring Systems
Specialists of the Scientific and Technical Centre Integrated Monitoring Systems, LLC develop the sections of design and detailed documentation in the field of Structural Health Monitoring Systems as a subsystem of Engineering Systems Monitoring. Our developments meet the requirements of the Decree of the Government of the Russian Federation dated February 16, 2008 No. 87 (as amended on May 27, 2022) “Concerning Composition of Design Documentation Sections and Requirements to their Contents.”
We develop the following sections of documentation for Structural Health Monitoring Systems to be installed at capital construction facilities of industrial and non-industrial purpose:
- constructive and space-planning solutions;
- information about engineering equipment;
- information about utility systems;
- list of engineering and technical measures;
- content of technological solutions, specifically:
- electric power supply system.
- communication networks.
- technological solutions (in terms of equipment).
- measures regarding ensuring access for disabled people (in terms of equipment).
- other documentation in the cases provided for by Federal Laws.
Structural Health Monitoring System provides:
- detection of negative change in the deformation state of structures, soil displacement, and erosions at an early stage;
- timely informing the personnel of the facility’s duty dispatcher service and the municipal unit’s Unified Duty Dispatch Service (Unified operational dispatch control system) about critical changes in the parameters of the condition of the facility’s load-bearing structures and soil displacement;
- safety of people and material objects.
Automated Traffic Control System, Toll Collection System, Transportation Safety System of Kazan – Yekaterinburg route

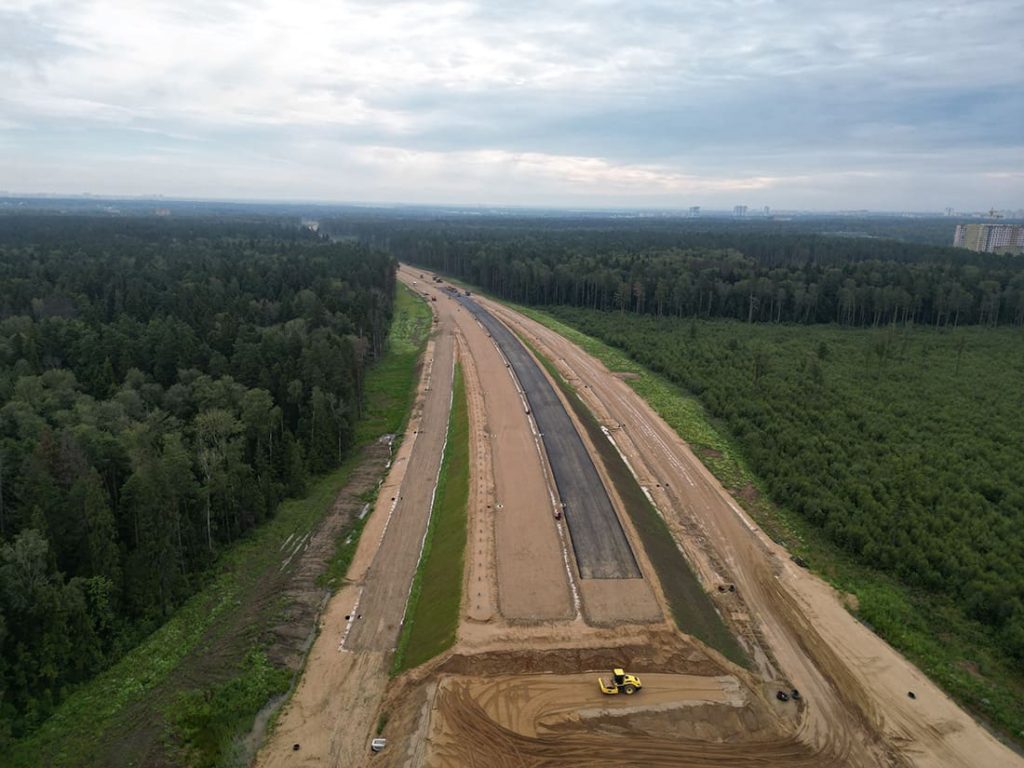

Front end engineering design for the construction of the Kazan – Yekaterinburg Highway
Geotechnical monitoring systems of Thermal Power Plant-3 of Norilsk Nickel Mining and Metallurgical Company, Public Joint-Stock Company, Norilsk
Fulfilling a package of works on geotechnical monitoring of tank farms at Thermal Power Plant-3 of Norilsk Nickel Mining and Metallurgical Company, Public Joint-Stock Company in Norilsk
Engineering Systems Monitoring, Latitudinal Highway Structural Health Monitoring Systems, Saint-Petersburg
Design of a continuous monitoring system for the Latitudinal Highway in Saint-Petersburg
Engineering Systems Monitoring, Structural Health Monitoring System of the bridge over the Ob River, Surgut
Design and installation of safety engineering facilities for a motor road bridge across the Ob River in the Surgut area with approaches
Automated Traffic Control System and Toll Collection System of the Moscow – Nizhny Novgorod – Kazan route
Design of system-wide solutions for an intelligent transport system on the Moscow – Nizhny Novgorod – Kazan highway under construction
